Specification |

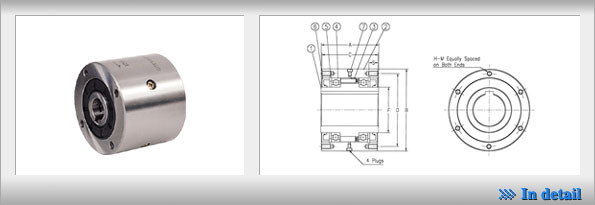

Dimensions-mm |
|
|
| Model |
Max.
Torque
(kgf-m) |
Max.
Indexing
(cycle/min) |
Stock
Bore Size |
A |
B
(h7) |
C |
D |
F |
S |
H-M
No. of
Tapped holes
Dia¡¿Pitch |
Lubric-
ation
Filler Plug
Dia¡¿Pitch |
GD2 |
Over-
running
Drag
(kgf-m) |
Oil
(CC) |
Weight
(kgf) |
Dia
(H7) |
Key
way |
Inner Race
(kgf-m2) |
| MX 22K |
8 |
1,200 |
22 |
6¡¿2.8 |
80 |
95 |
77 |
80 |
35 |
16 |
4¡¿M8¡¿1.25 |
M6¡¿1.0 |
0.0006 |
0.048 |
80 |
3.3 |
| MX 35K |
24 |
1,200 |
35 |
10¡¿3.3 |
90 |
125 |
87 |
110 |
50 |
16 |
4¡¿M8¡¿1.25 |
M6¡¿1.0 |
0.0025 |
0.139 |
110 |
5.2 |
| MX 50K |
45 |
1,200 |
50 |
14¡¿3.8 |
100 |
125 |
97 |
140 |
70 |
16 |
6¡¿M8¡¿1.25 |
M8¡¿1.25 |
0.011 |
0.273 |
190 |
10.2 |
| MX 70K |
80 |
1,200 |
70 |
20¡¿4.9 |
127 |
200 |
124 |
180 |
100 |
20 |
6¡¿M10¡¿1.5 |
M8¡¿1.25 |
0.052 |
0.525 |
340 |
21.3 |
|
| |
| Character |
|
| 1. For indexing applications only. |
2. For installation, insert the clutch into hub bore of the pulley, gear or torque arm and screw bolts
(high tension) tightly. |
| 3. A press fit do not exceed 0.025mm. |
| 4. A braking device and a back stopping device may be required for accurate performance. |
| |
 |
| |
